Construction Site Monitoring Planning

Construction Site Security Camera Solutions

Construction site monitoring changes as entrances, material zones, equipment areas and perimeters move through the project. JBCVISION helps contractors, integrators and channel buyers compare temporary 4G, solar, battery and wired site-office options without claiming unconfirmed trailer, tower or AI detection functions.

Request a Quote

Email: sales@jbcctvcamera.com

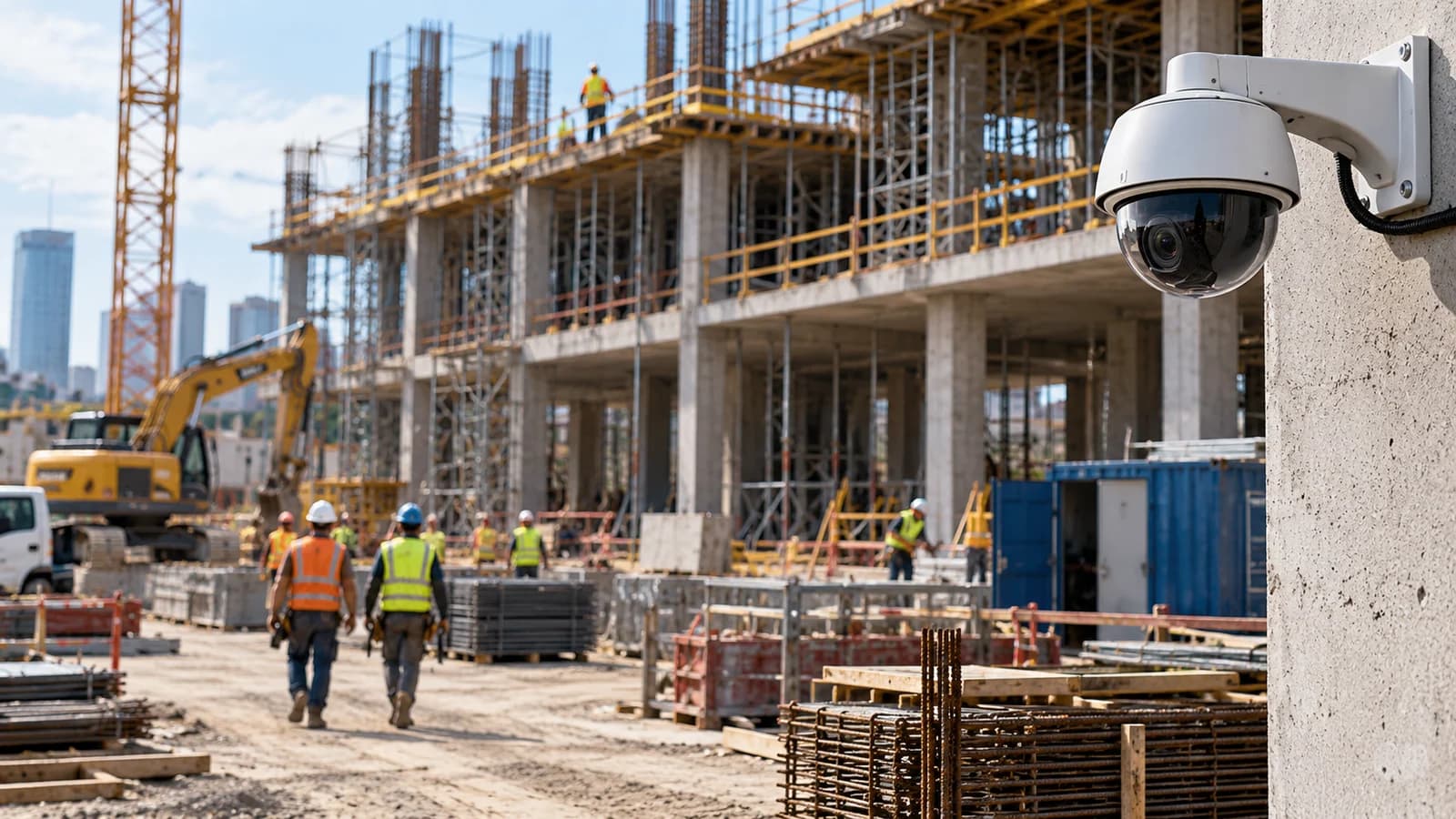

Daytime construction site with surveillance camera for temporary project monitoring

Project Planning Context

Plan the Right Camera System for a Changing Site

A construction site camera plan has to account for entrances, material storage, equipment zones and perimeter points that may move as the project progresses. The best structure depends on temporary power, cellular signal, mounting options and how often the cameras may need relocation.

Before quotation, confirm current site stage, 4G signal, power availability, solar exposure, recording expectations and relocation schedule. Site-office areas may support PoE or WiFi, while remote gates or material zones may require 4G or solar-supported deployment.

No fixed broadband at early site stage

Problem: Camera positions may need to move as the site layout changes through different construction phases.

Deployment idea: Use 4G only where carrier signal is verified.

Confirm: SIM data cost and signal stability remain project risks.

Temporary power conditions

Problem: Temporary power and broadband availability can vary between the site office, perimeter and equipment yard.

Deployment idea: Evaluate solar/battery or local AC power point by point.

Confirm: Recording expectations must match power budget.

Site layout changes during construction

Problem: Recording expectations must match the available power and network; do not assume continuous recording for every remote device.

Deployment idea: Use flexible mounting and plan relocation checks.

Confirm: Each relocation needs power, signal and view review.

Typical Monitoring Areas

Use the planning diagram as a discussion aid. It is not a real project floor plan or a coverage calculation.

Temporary gate

Vehicle access, staff entry and visitor movement.

4G or PoE camera depending on site office network. Confirm: Check power, pole location and cellular signal.

Equipment zone

Excavators, tools and parked machinery.

PTZ or fixed outdoor camera after distance review. Confirm: Confirm viewing distance and lighting.

Material storage

Steel, pallets, temporary containers and deliveries.

Solar 4G or PoE camera based on infrastructure. Confirm: Check whether the point has power after working hours.

Perimeter section

Fence line and approach paths.

Solar 4G camera for isolated perimeter points. Confirm: Confirm sunlight exposure and 4G signal.

Site office

Entrance, documents and temporary network point.

PoE or WiFi camera near existing router. Confirm: Check router location and cable path.

Compare Deployment Options

Choose the structure according to power, network, recording, expansion and project installation conditions.

4G temporary monitoring pointTemporary gates, material areas or equipment zones where broadband is unavailable but cellular coverage is usable.4G camera, SIM card and data plan, Mounting pole, wall or temporary bracket, Model-specific local or app storageThe camera connects through the mobile network for remote viewing and configured recording behavior.Signal strength, data plan, power source and recording mode must be confirmed. Do not assume connection to an NVR unless the model and project structure support it.

Solar-supported 4G pointOutdoor construction points with limited power access and enough sunlight exposure.Solar-powered 4G camera or solar kit, Battery system, SIM service, Weather-suitable mountingSolar/battery supports local power while 4G provides network access. Recording behavior depends on model and power budget.Sunlight, installation angle, charging margin and maintenance access should be reviewed before quotation.

Site-office PoE or WiFi systemMore stable site offices, warehouses or temporary buildings with power and a router.PoE or WiFi cameras, PoE NVR/switch or router, NVR storage when required, Monitor or remote accessCameras around the site office connect through the local network; PoE supports wired power/data and NVR recording when planned.This is better for fixed temporary buildings than changing perimeter points. Cable safety and relocation plans matter.

4G temporary deployment

4G CameraRequired

Cellular NetworkOptional

Mobile AppOptional

Optional Local StorageConnection

Suitable for gates, perimeter or material zones without fixed broadband.

Site office PoE system

PoE CamerasRequired

PoE NVR / SwitchRequired

NVR StorageConnection

Monitor / AppConnection

Suitable where a temporary office has power, router access and a stable location for a recorder.

Project Planning Checklist

Prepare these details so JBCVISION can review camera quantity, system structure and OEM/ODM sourcing requirements more efficiently.

Site stage and expected layout changes
Temporary entrance and material storage positions
Equipment area and perimeter points
Available AC power or solar exposure
4G carrier signal and SIM plan
Mounting poles, fences or temporary structures
Required recording mode and viewing frequency
Relocation schedule and maintenance access
Estimated quantity and delivery timeline

Construction Site Monitoring FAQ

Can construction cameras be moved during the project?

Some temporary 4G, battery or solar options are easier to relocate, but signal, power, mounting and view must be checked again after movement.

Do construction sites always need solar cameras?

No. Solar is useful where power is unavailable, but site-office areas with power may use PoE or WiFi cameras instead.

Can 4G cameras record to an NVR?

Do not assume this by default. The connection and recording mode depend on the specific model and project structure.

Does JBCVISION provide PPE detection or construction AI?

This page does not claim PPE detection, LPR or behavior analytics. Any advanced function must be confirmed from actual product data.

What details are needed for a construction-site quote?

Gate and material locations, power, 4G signal, mounting conditions, recording needs, quantity and relocation expectations are key.

Discuss Your Security Camera Project

Tell us your site type, monitoring points, power and network conditions, recording needs, quantity and expansion plan.
