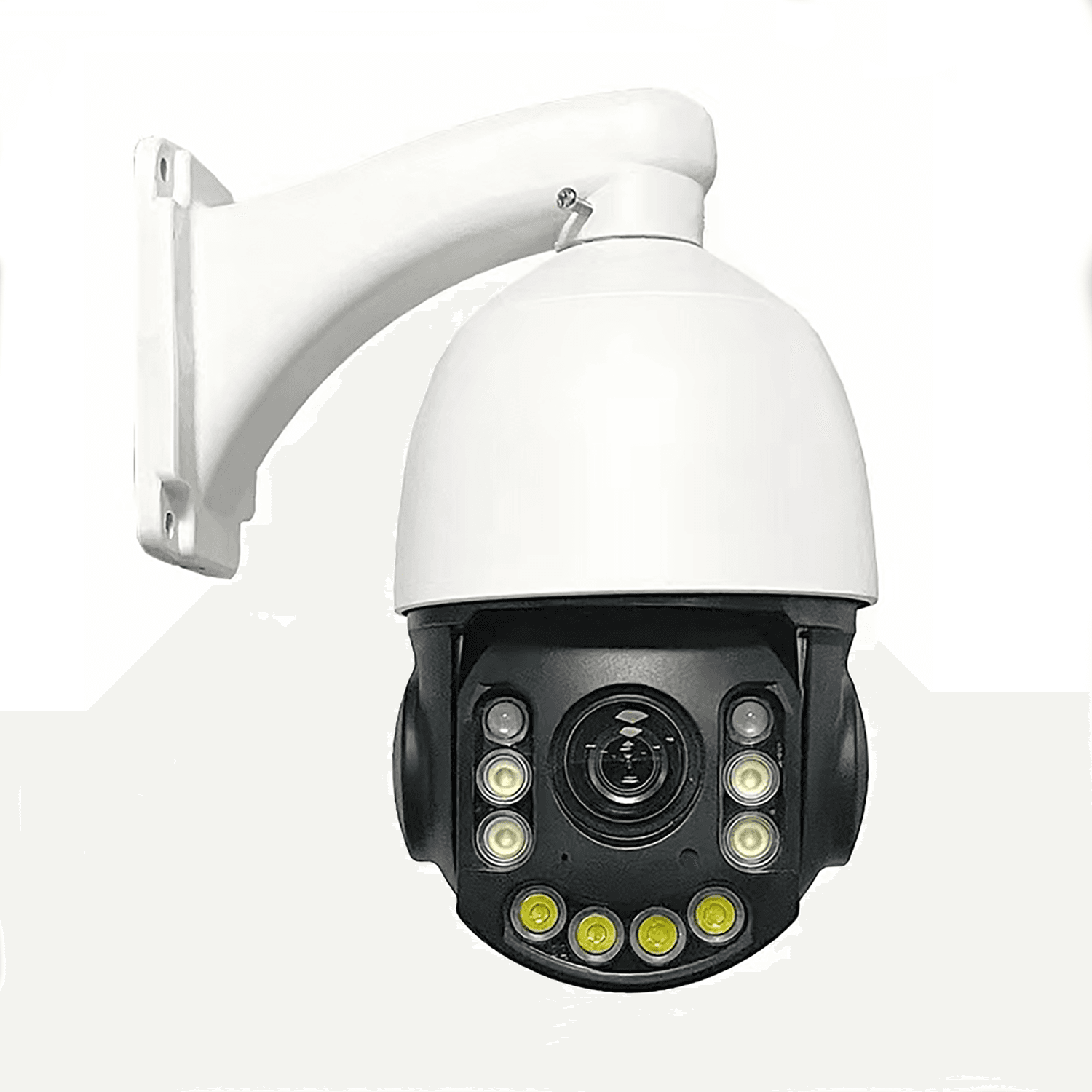

JBZ-304Q-X 3MP POE PTZ Camera product image

PTZ-04Q-X / Selected Configuration: JBZ-304Q-X

JBZ-304Q-X 3MP Ptz Camera

Compact 3MP POE ptz camera for wired surveillance projects in offices, retail stores, warehouses and commercial buildings.

Compare PTZ camera models
  • 3MP video
  • Single-cable POE installation
  • 20x Optical Zoom · 5.4-97.2 mm
  • Dual-light night vision
Ask About OEM Customization

Technical data

Technical specifications

Final values must be confirmed according to the selected model, app solution and project configuration.

Camera

Image SensorCMOS Sensor
Resolution3MP
Lens20x Optical Zoom · 5.4-97.2 mm

Network

EthernetWired Ethernet
POESupported

General / Packaging

HousingMetal+Plastic
Housing Size4.5inch
App OptionTSEYE

Configurations

Available Configurations

ModelResolutionOptical ZoomFocal LengthAudioNetwork / POEAction
JBZ-304Q-XJBZ-304Q-X 3MP POE PTZ Camera3MP20x5.4-97.2 mmOptionalYesCurrent Configuration
JBZ-504Q-XJBZ-504Q-X 5MP POE PTZ Camera5MP20x5.4-97.2 mmOptionalYesView Configuration
Compare PTZ camera models

PoE Camera Installation and Connections

All ports show functional connections only, not the rear-panel positions of any specific model. Check the selected camera, recorder, switch and power specifications before installation.

1. Direct Connection to a PoE NVR

  1. Connect each compatible PoE camera to a camera PoE port on the PoE NVR using an Ethernet cable.
  2. Connect the NVR LAN port to the router or local network. Connect a local monitor to the NVR HDMI output.
  3. Connect the specified NVR power supply. Check the PoE standard, per-port power and total power budget for the selected cameras.
  4. Configure and verify local recording. Internet access and the supported remote-access setup are required for viewing from outside the local network.

2. Connection via a PoE Switch

  1. Connect compatible PoE cameras to the PoE switch. A non-PoE IP camera needs its own specified power supply and an Ethernet data connection to the LAN.
  2. Connect the switch uplink to the router or LAN and connect the NVR LAN port to that same network. Follow the selected equipment documentation for the network topology.
  3. Power the NVR and PoE switch separately using their specified supplies. Connect the NVR HDMI output to a local monitor.
  4. Add compatible cameras to the NVR and verify recording. Confirm addressing, supported protocols, recording channels and the PoE power budget before installation.

Local recording and viewing on the connected monitor do not require internet. Remote viewing requires internet access and a supported, correctly configured remote-access method.

Direct Connection to a PoE NVR

Functional diagram: PoE cameras connect to NVR PoE ports; NVR LAN connects to a router, HDMI to a local monitor, and a separate supply powers the NVR.

Functional connections only; port positions are illustrative.
