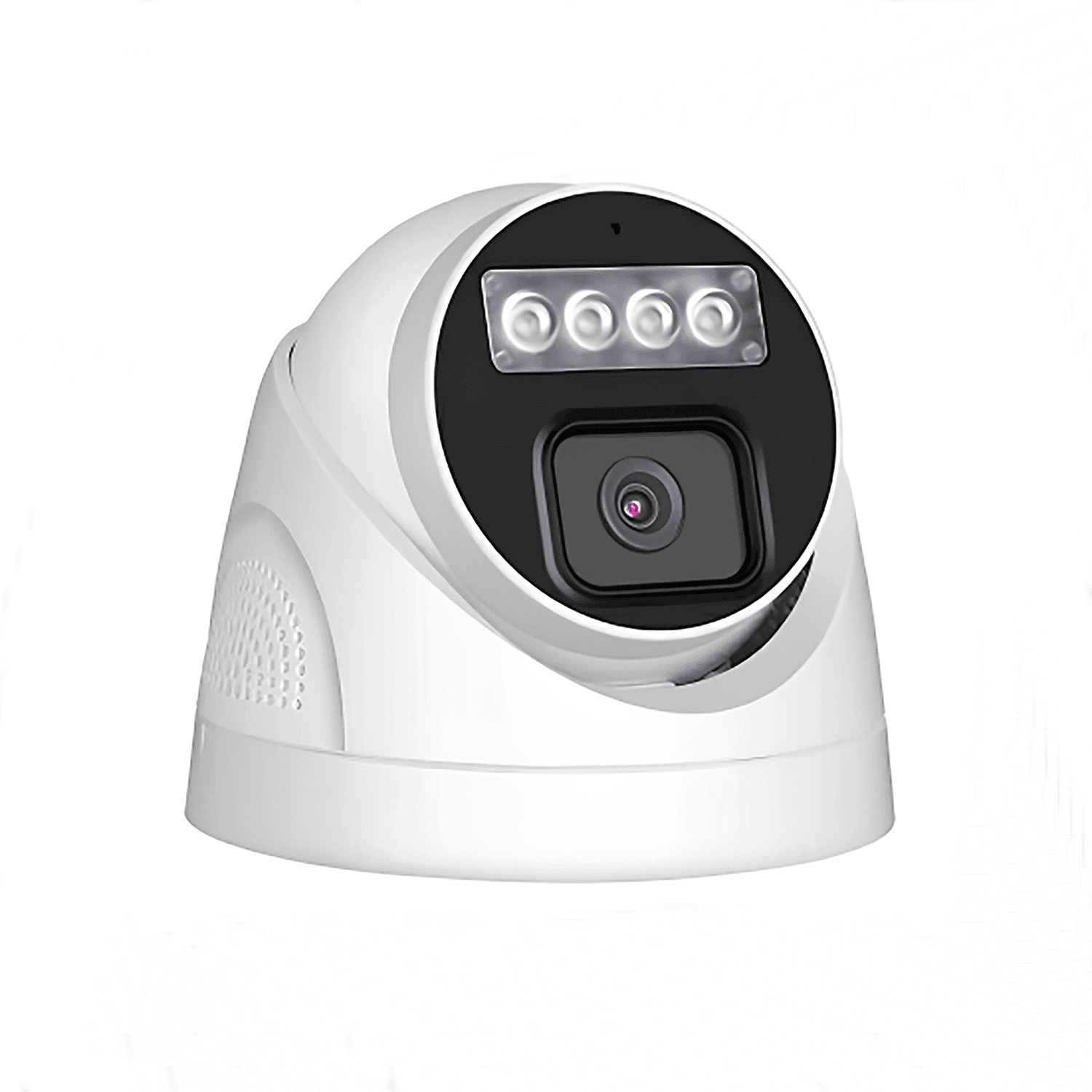

JBE-01D / Selected Configuration: JBE-301D
JBE-01D
Compact 3MP POE dome camera for wired surveillance projects in offices, retail stores, warehouses and commercial buildings.
- 3MP video
- Single-cable POE installation
- H.265 video compression
- 3.6mm fixed lens
- ONVIF for compatible NVR / VMS
- Dual-light night vision
Technical data
Technical specifications
Final values must be confirmed according to the selected model, app solution and project configuration.
Camera
Image Sensor1/3 inch CMOS Sensor
Resolution3MP
Lens3.6mm fixed lens
Video
CompressionH.264 / H.265
Network
EthernetWired Ethernet
POESupported
ONVIFSupported for compatible NVR / VMS platforms
Web / VMS / Mobile AppSupported
Night Vision
IR LEDs6 pcs
White LEDsDual-light LEDs
Audio
Built-in MicOptional
SpeakerOptional
General / Packaging
HousingMetal Cap+Plastic
Housing Size2.5"
Box Size130*130*115mm
App OptionTSEYE
Configurations
Available Configurations
| Model | Resolution | Lens | Audio | Network / POE | Action |
|---|---|---|---|---|---|
| JBE-301DJBE-301D 3MP POE Dome Camera | 3MP | 3.6mm | Optional | Yes | Current Configuration |
| JBE-501DJBE-501D 5MP POE Dome Camera | 5MP | 3.6mm | Optional | Yes | View Configuration |
| JBE-501D-2JBE-501D-2 5MP POE Dome Camera | 5MP | 3.6mm | Optional | Yes | View Configuration |
| JBE-501D-3JBE-501D-3 5MP POE Dome Camera | 5MP | 3.6mm | Optional | Yes | View Configuration |
| JBE-801DJBE-801D 8MP POE Dome Camera | 8MP / 4K | 3.6mm | Optional | Yes | View Configuration |
Private label sourcing
Need OEM / ODM customization?
Logo, packaging, firmware and project configuration options are available for distributor and OEM orders.
Bulk and project inquiry
Request a product quotation
Tell us about your market, project and required configuration. No retail pricing or shopping cart is used.
